BW Series drilling mud pump wear parts are essential replacement components used in mud pumping systems for drilling operations.
These parts are designed to support stable fluid circulation, maintain pumping efficiency, and reduce downtime in harsh drilling environments.
In oilfield drilling, water well drilling, geothermal drilling, mining, and foundation engineering, the performance of a mud pump depends heavily on the condition of its wear parts.
Among the most critical BW Series drilling mud pump wear parts are the piston, liner, valve seat, valve, valve guide, and related sealing components.
This guide provides general industry information about BW Series drilling mud pump wear parts, including definitions, working principles, material options, performance advantages, common specifications, selection factors, and maintenance considerations.
It is written in clear English and structured for SEO-friendly use on blog pages, category pages, product directories, and industry landing pages.
The content is intended for informational purposes only and does not include specific company recommendations.
BW Series drilling mud pump wear parts are consumable or semi-consumable components installed in BW series mud pumps to handle abrasive drilling fluids.
During drilling, mud pumps transfer slurry, drilling mud, or other fluids under high pressure through the system.
Because the fluid often contains sand, clay, rock particles, and chemical additives, internal components are exposed to continuous wear, impact, corrosion, and heat.
The term “wear parts” refers to components that are expected to experience gradual deterioration and must be replaced periodically to keep the pump operating efficiently.
In BW Series pumps, these parts typically include:
These parts play a direct role in creating pressure, controlling fluid movement, and maintaining the pumping cycle.
If wear parts become damaged or oversized, the mud pump may lose pressure, deliver lower flow rate, or consume more energy.
For this reason, BW Series drilling mud pump wear parts are critical for drilling reliability and operational cost control.
In drilling projects, pump performance affects circulation stability, borehole cleaning, drill bit cooling, and cuttings removal.
BW Series mud pumps are widely used in small to medium drilling applications because of their practical design, relatively simple maintenance, and reliable fluid handling capability.
However, the efficiency of any mud pump depends on the condition of the fluid end wear components.
The main reasons these parts matter include:
In practical terms, the quality of the wear parts often determines whether the pump runs smoothly or becomes a maintenance problem.
That is why understanding BW Series drilling mud pump wear parts is important for contractors, maintenance teams, distributors, and engineering buyers.

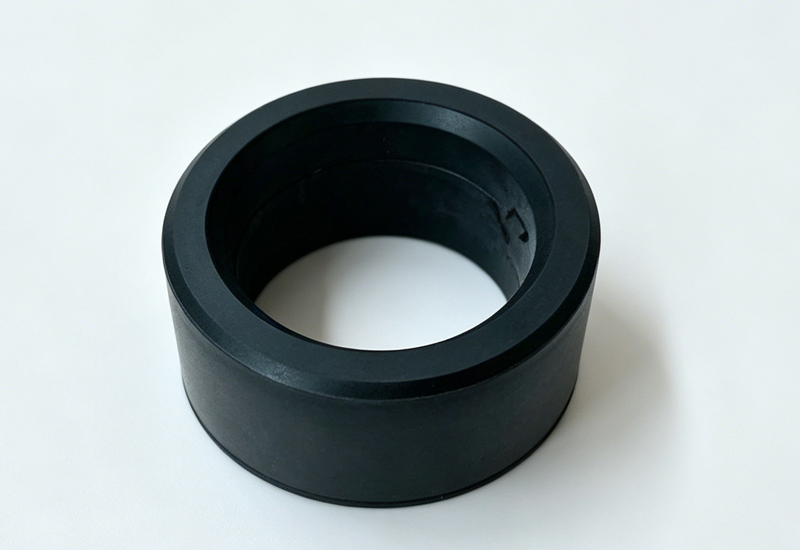

The piston is one of the most important reciprocating parts in a mud pump.
It moves back and forth inside the liner to create suction and discharge pressure.
As the piston travels, it forms a sealing action against the liner wall, enabling the pump to draw in fluid and force it out at high pressure.
Piston performance affects volumetric efficiency, pressure output, and leakage control.
In many BW Series mud pumps, the piston may be made with a metal core and replaceable rubber or polyurethane sealing element.
The sealing surface must be flexible enough to maintain contact, yet durable enough to resist wear from abrasive mud.
The liner, sometimes called the cylinder liner, provides the internal working surface against which the piston moves.
It is exposed to continuous abrasion, friction, and corrosion.
Because the liner directly contacts the moving piston and slurry, it is one of the highest-wear components in the pump.
Liner quality strongly influences pump life.
A well-made liner should have excellent surface hardness, precision inner diameter, and stable dimensional tolerance.
Depending on the pump design and application, liners may be manufactured from hardened alloy steel, ceramic-coated materials, or other wear-resistant solutions.
Valve components regulate the direction of mud flow in the pump chamber.
They open and close in response to pressure changes during the pumping cycle.
The main valve-related parts usually include the valve seat, valve body, valve rubber or insert, and valve spring or guide.
The valve assembly ensures one-way flow and prevents reverse movement of fluid.
If valve components are worn, the pump may experience backflow, pressure loss, hammering, or irregular discharge.
Because valve parts are exposed to repeated impact and abrasive media, they require accurate machining and durable materials.
In addition to the main piston, liner, and valve elements, BW Series mud pumps use sealing-related wear parts to reduce leakage and support fluid containment.
These may include packing rings, O-rings, dust seals, and backup rings.
Although small in size, these components are essential for maintaining pump efficiency.
A failed seal can lead to fluid leakage, contamination, pressure drop, and accelerated wear of surrounding parts.
Proper seal selection and timely replacement are therefore important for reliable operation.
BW Series mud pumps are generally positive displacement pumps.
Their working principle is based on reciprocating motion and controlled valve operation.
When the piston moves backward, the pressure in the chamber drops, the inlet valve opens, and fluid enters the pump chamber.
When the piston moves forward, the inlet valve closes, the outlet valve opens, and the fluid is forced out under pressure.
This process repeats continuously.
The piston and liner must keep a tight seal to create the pressure needed for discharge.
The valve components must open and close precisely to ensure directional flow.
Any wear, surface roughness, dimensional change, or deformation in these parts can reduce pump performance.
Because the pumping medium is often abrasive, the wear parts are not only mechanical components but also protection elements for the entire fluid end assembly.
Their design and material selection are therefore directly connected to pump service life and operating cost.
Material selection is one of the most important factors in wear part performance.
Different applications require different hardness, elasticity, corrosion resistance, and temperature resistance.
The most common materials used for BW Series drilling mud pump wear parts include:
The best material depends on mud composition, temperature, pressure, and the required service life.
For example, highly abrasive slurry often benefits from harder liner and valve materials, while sealing components need elasticity and resilience.
High-quality BW Series drilling mud pump wear parts deliver several operational advantages.
These advantages are especially important in projects where pump uptime and cost control are critical.
| Advantage | Description | Operational Benefit |
|---|---|---|
| Wear resistance | Designed to resist abrasion from mud, sand, and cuttings | Longer service life and fewer replacements |
| Pressure retention | Maintains sealing efficiency between piston and liner | Stable discharge pressure and better pumping performance |
| Corrosion resistance | Protects against chemical additives and moisture | Reduced degradation in aggressive environments |
| Dimensional accuracy | Ensures proper fit and movement within the fluid end | Lower leakage and smoother operation |
| Maintenance efficiency | Parts designed for straightforward replacement | Less downtime and simpler servicing |
| Cost control | Longer part life lowers frequency of replacement | Reduced total operating cost |
BW Series drilling mud pump wear parts are used in a wide range of pumping and drilling environments.
Although the exact pump model may vary, the core applications are similar across the industry.
In these applications, the wear parts must handle dirty fluids, variable pressure, long working hours, and difficult site conditions.
A suitable piston, liner, and valve set can make a major difference in field productivity.
Regular inspection of BW Series drilling mud pump wear parts is necessary to avoid unexpected breakdowns.
As components wear out, the pump may show clear warning signs.
| Wear Sign | Likely Cause | Recommended Action |
|---|---|---|
| Pressure drops during operation | Worn piston, liner, or valves | Inspect sealing parts and replace damaged components |
| Increased leakage | Seal failure, worn packing, or surface damage | Replace seals and check mating surfaces |
| Unusual noise or vibration | Valve wear, loose components, or misalignment | Stop operation and inspect valve assembly |
| Reduced flow rate | Internal leakage or poor valve closing | Check liner, piston, and valve condition |
| Visible scoring or scratches | Abrasive particles or insufficient lubrication | Replace worn parts and examine fluid quality |
| Overheating | Excess friction or poor fit | Inspect clearances and cooling conditions |
In many cases, wear parts should be replaced before complete failure occurs.
Preventive replacement is usually more economical than emergency repair, especially in critical drilling projects.
When selecting BW Series drilling mud pump wear parts, several specifications should be checked carefully.
These specifications help ensure compatibility with the pump model and the working environment.
| Specification Item | What to Check | Why It Matters |
|---|---|---|
| Model compatibility | Matches the exact BW pump series and size | Ensures proper installation and function |
| Inner diameter / outer diameter | Precision dimensions of piston and liner | Affects sealing and movement accuracy |
| Material grade | Rubber, polyurethane, alloy steel, ceramic, etc. | Determines wear resistance and durability |
| Hardness | Surface hardness or Shore hardness for elastomers | Influences abrasion resistance and sealing performance |
| Pressure rating | Maximum working pressure supported | Prevents overload and failure |
| Temperature resistance | Operating temperature range | Ensures stable performance in hot or cold conditions |
| Fluid compatibility | Resistance to mud additives, oil, water, and chemicals | Reduces swelling, cracking, and corrosion |
| Service life expectation | Estimated replacement interval | Supports maintenance planning |
The table below provides a general reference structure for common BW Series drilling mud pump wear parts.
Actual values may vary by pump model, manufacturer, and application.
| Part Name | Typical Material | Primary Function | Wear Characteristic |
|---|---|---|---|
| Piston | NBR, polyurethane, rubber with metal core | Creates reciprocating pressure and sealing action | Subject to friction, compression, and abrasion |
| Liner | Hardened alloy steel, ceramic-coated steel | Forms the working chamber for piston movement | High abrasion and corrosion exposure |
| Valve seat | Alloy steel, high-chrome iron, stainless steel | Supports valve closing and flow control | Impact wear and particle erosion |
| Valve insert / rubber | Rubber, polyurethane, elastomer blends | Assists sealing and impact absorption | Compression fatigue and wear |
| Valve body | Steel or alloy steel | Holds and guides valve movement | Mechanical wear and corrosion |
| Packing ring | Rubber or composite materials | Prevents leakage around moving parts | Gradual compression loss |
| O-ring | NBR, FKM, or other elastomers | Static sealing | Ageing, swelling, or chemical attack |
Choosing the right replacement parts is important for performance and compatibility.
Buyers should focus on fit, material quality, and the working conditions of the pump.
In general, the best wear part is not always the cheapest one.
A suitable part should deliver stable sealing, long life, and dependable operation under real field conditions.
Good maintenance practices can significantly extend the life of BW Series drilling mud pump wear parts.
Even high-quality components can wear rapidly if the pump is operated incorrectly or neglected.
Routine maintenance not only increases part life but also protects the pump body, crankshaft, bearings, and other expensive assemblies.
This is especially important in field operations where repair delays can affect the entire drilling schedule.
Although many industrial pumps use wear parts, mud pump wear components face especially severe conditions.
Compared with standard water pumps or clean-fluid pumps, BW Series mud pump wear parts are designed for much heavier abrasion, thicker fluid, and fluctuating load.
| Feature | BW Series Mud Pump Wear Parts | General Pump Wear Parts |
|---|---|---|
| Fluid type | Abrasive mud, slurry, drilling fluid | Cleaner or less abrasive liquids |
| Wear level | High | Moderate to low |
| Material demand | High hardness, high resilience, corrosion resistance | Standard industrial material grades |
| Replacement frequency | More frequent in severe conditions | Often less frequent |
| Maintenance priority | Critical for drilling continuity | Important, but often less urgent |
This comparison shows why BW Series drilling mud pump wear parts must be selected with particular attention to durability and compatibility.
A part that works in clean water service may fail quickly in drilling mud applications.
For content planning, indexing, and search optimization, the following key terms are commonly associated with this topic:
Using these keywords naturally throughout a page can help search engines understand the page topic.
For best results, the text should remain readable and informative while still using the target terms in headings, body content, and tables.
Replacement frequency depends on operating pressure, fluid abrasiveness, run time, and maintenance quality.
Some parts may require replacement after a relatively short service period in harsh conditions, while others last longer in lighter applications.
Regular inspection is the best way to determine replacement timing.
In many cases, pistons, liners, and valve assemblies wear out first because they are exposed to direct friction and abrasive fluid flow.
Seals and packing can also degrade quickly if conditions are severe or installation is improper.
Yes. Improved materials such as high-grade polyurethane, hardened alloys, or ceramic-based liners can significantly extend service life in abrasive environments.
However, correct fit and installation are equally important.
Early wear may be caused by dirty fluid, poor lubrication, incorrect assembly, misalignment, excessive pressure, dry running, or inferior material quality.
Preventive maintenance and proper operating procedures help reduce these problems.
BW Series drilling mud pump wear parts are fundamental to the performance, durability, and efficiency of drilling fluid systems.
The piston, liner, valve components, and sealing elements work together to create pressure, control flow, and resist the damaging effects of abrasive mud.
Because these parts face constant stress, material quality, dimensional accuracy, and maintenance discipline all play major roles in pump reliability.
For drilling contractors, equipment users, distributors, and technical buyers, understanding BW Series drilling mud pump wear parts is essential for minimizing downtime and improving operating efficiency.
Whether used in water well drilling, geothermal projects, mining, or general slurry applications, well-chosen wear parts help support stable pumping performance and lower total lifecycle cost.
If you are building an industry page, product category page, or informational blog, this topic offers strong SEO potential because it combines high-intent keywords, technical search terms, and practical maintenance information.
A well-structured page featuring BW Series drilling mud pump wear parts, piston, liner, and valve components can help attract relevant traffic from users searching for replacement parts, specifications, and general drilling pump knowledge.
```
